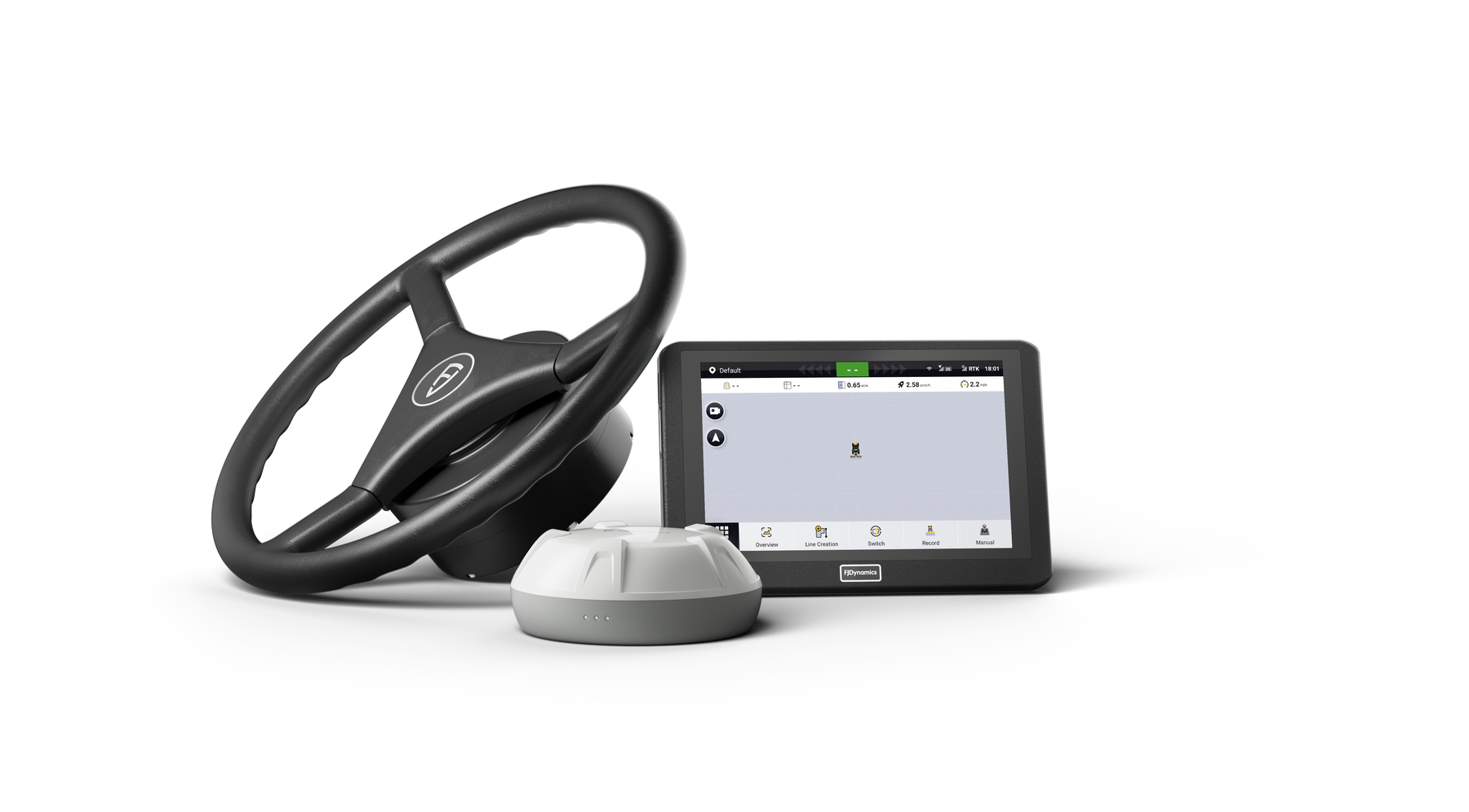

🧭 FJD AT2 Auto Steer System – Precision Autosteering for Every Farm

Overview

The FJD AT2 Auto Steer System delivers 2.5 cm pass-to-pass accuracy using advanced GNSS and RTK technology, bringing precision and efficiency to a wide range of agricultural operations.
Compatible with tractors, combines, sprayers, and other agricultural machinery, the AT2 eliminates skips and overlaps, reduces fuel and input costs, and allows operators to work accurately day or night.

With wireless connectivity, optional ISOBUS capability, and multiple correction signal options, the AT2 is a flexible solution that adapts to every stage of the farming season.

⚙️ Key Features

• 2.5 cm RTK Accuracy for precise autosteering across all terrains

• Smart U-Turn Function – choose Ω or fishtail turns for efficient headland management

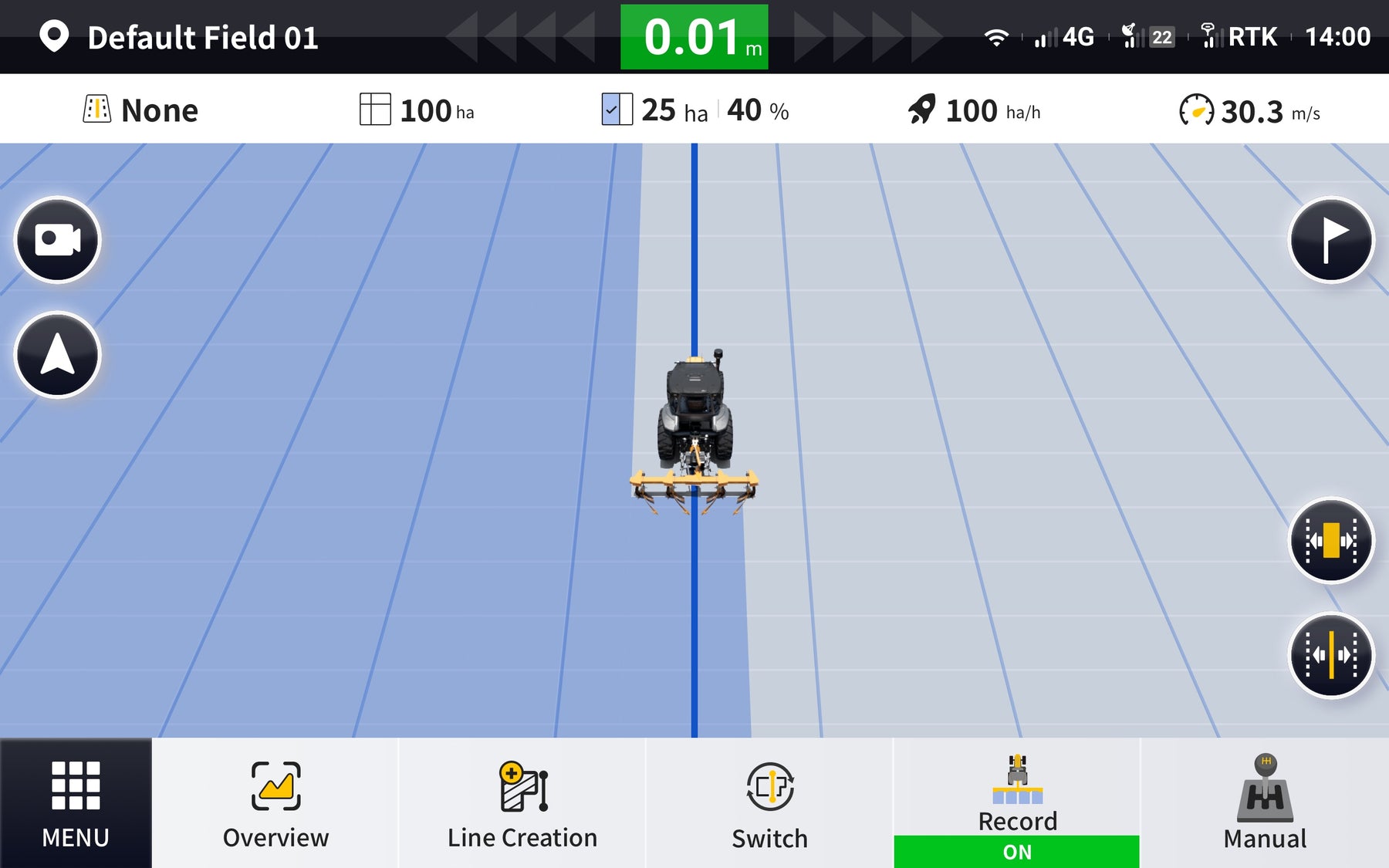

• Multiple Guidance Lines – AB, A+, curve, pivot, and combination paths

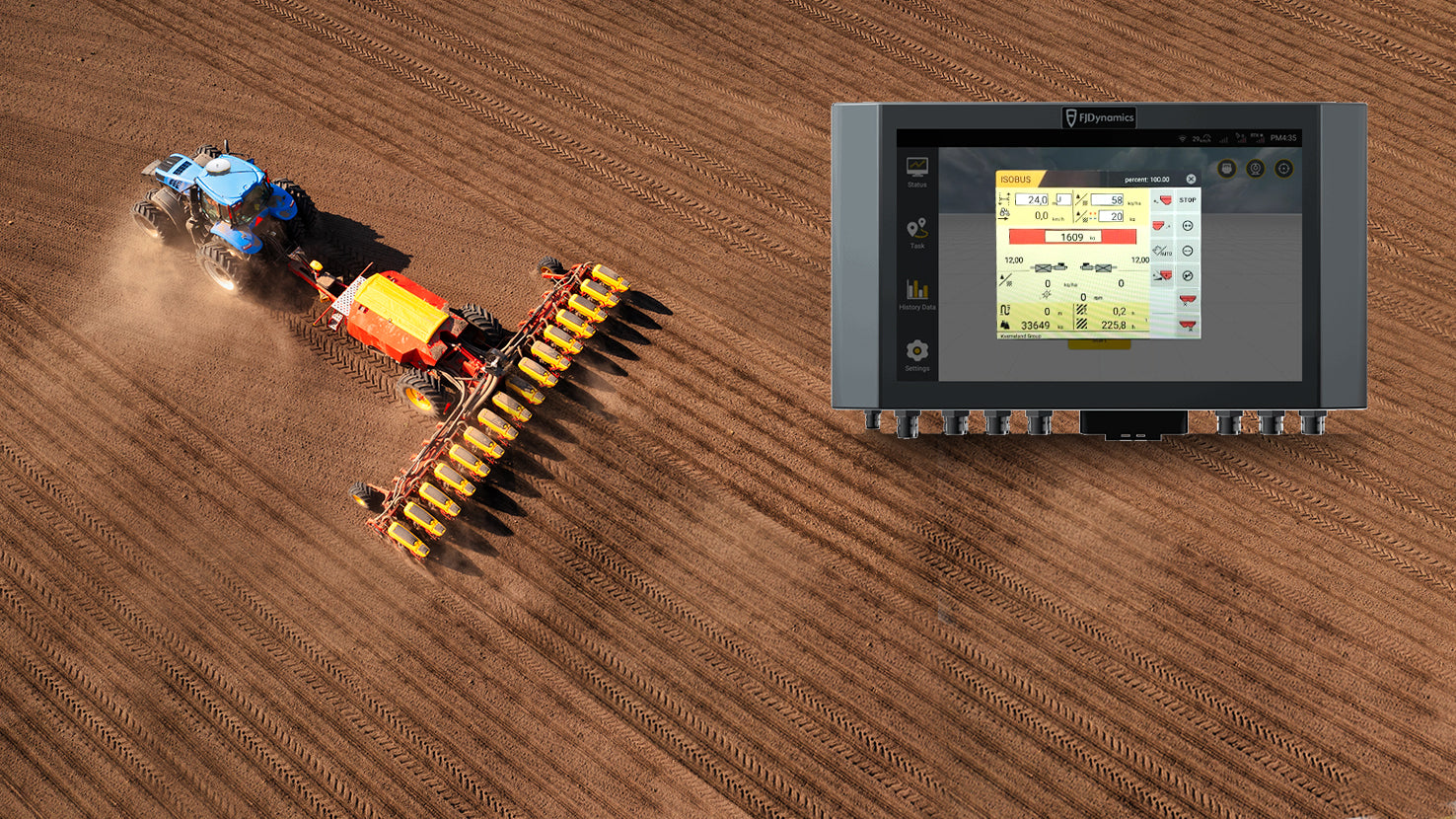

• Optional ISOBUS Upgrade – enables section control and variable rate applications for precise implement management

• PPP / SBAS / ALS Correction Signals – maintain high accuracy even without RTK

• Terrain Compensation – consistent performance on slopes and uneven land

• Wide Speed Range: 0.1 – 26 km/h for low-speed planting to high-speed spraying

• Full FMS Integration – synchronise data with the FJD Farm Management System for mapping, boundary setup, and task automation

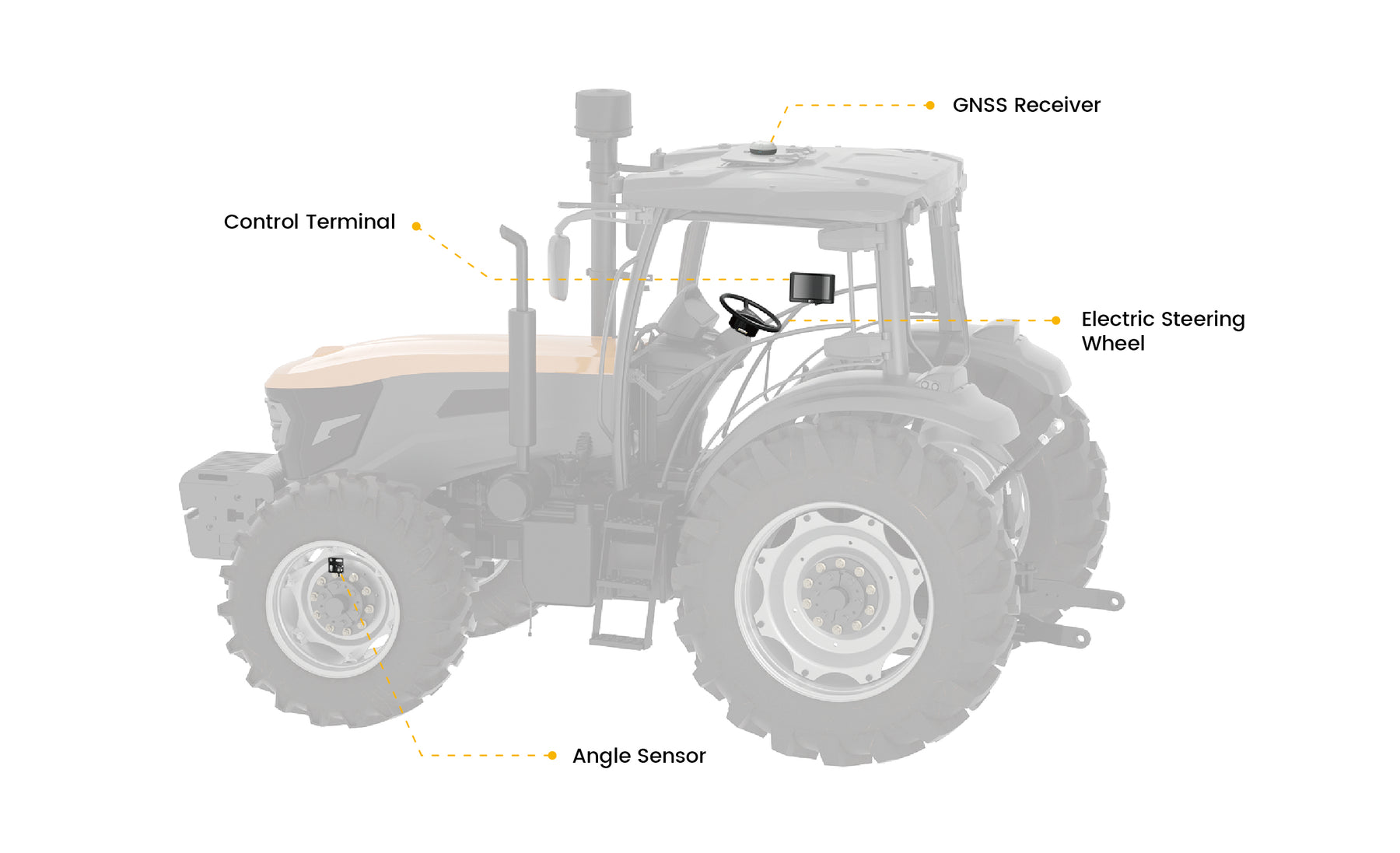

• Easy Installation – compact components and intuitive calibration minimise downtime

📡 Correction Signal Options

The AT2 supports a range of correction services to suit every farm’s needs:

• RTK Base Station Connectivity – connect to fixed or portable FJD RTK stations for maximum accuracy

• RTK Subscription (4G) – real-time network correction available through Scrase Farms Ltd as an authorised CloudBase RTK reseller.

• Free PPP / SBAS / ALS Signals – achieve decimetre-level accuracy without additional cost or network connection

These options ensure flexibility and reliability, wherever your operations take place.

🌾 Applications

Ideal for a wide range of operations, including:

• Land preparation and harrowing

• Planting and seeding

• Spraying and fertilising

• Harvesting and combining

🔌 Accessories

Enhance usability with optional accessories:

• FJD ISOBUS Module – manage multiple implements through a single terminal

• FJD Easy Control / Easy Switch – remote operation when the touchscreen is out of reach
