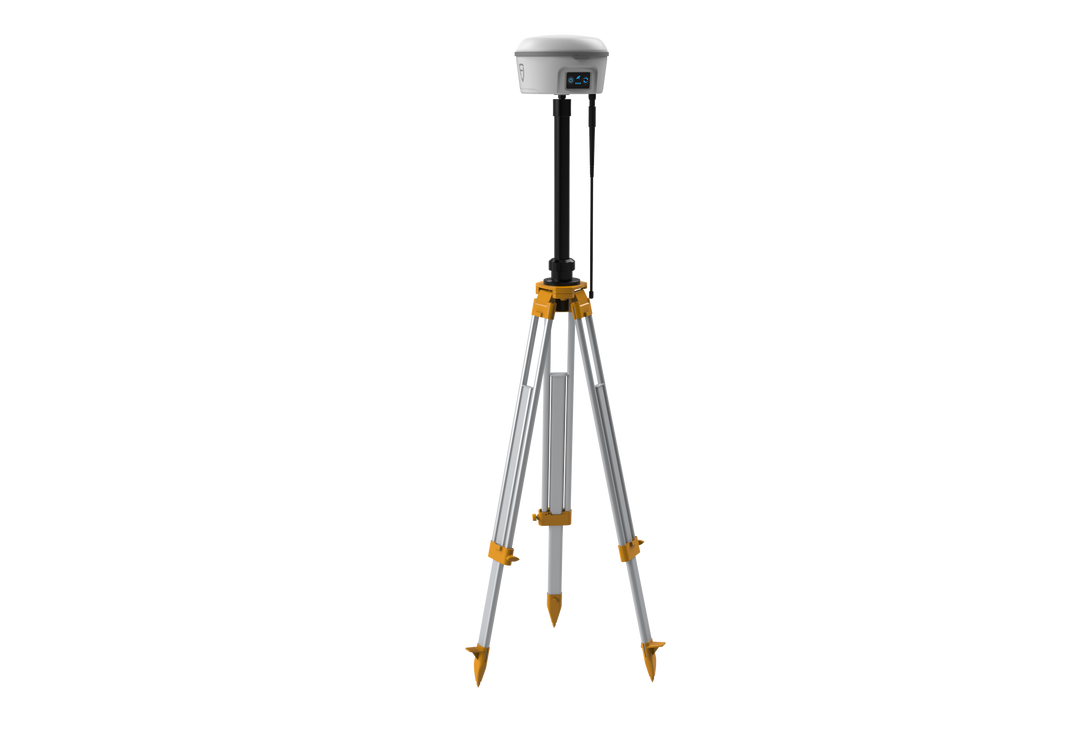

FJD Base Station utilizes advanced RTK technology and data transmission to satisfy users’ requirements for precise positioning.
Centimeter-level 3D Positioning
Integrating multiple data transmission provides real-time differential data for various machines and realizes centimeter-level 3D positioning and precise orientation, covering a radius of 5km where there is no interference or shield.
Global Signal Coverage
It receives signals from 16 frequency bands of 5 satellite navigation systems, including GPS, GLONASS, Beidou, GALILEO and QZSS.
Intelligent Channel Detection
With built-in anti-interference and high-gain antenna and high-performance receiver, it is able to receive more satellite signals through intelligent channel detection, and reduce user operations.
Quick Setup
Rapid base station setup can be realized so long as the right location is selected.
Modular Design
Base station module realizes base station positioning.
Bracket realizes unobstructed working environment and ensures the accuracy and strength of signals.
Removable Battery
Dual-battery lasts for 12h, and AC power supply supports hot plugging.
Battery can be replaced without powering off.
Continuous operation is guaranteed.
Specs:
Satellite and Positioning
| Satellite Tracking |
624 channels available.
Support complete constellation of Beidou.
Can be upgraded to Beidou III satellite. |
| Tracking Features |
BDS: B1/B2, (Can be upgraded to B3)
GPS: L1/L2
GLONASS: L1/L2
GALILIEO: E1/E5B
QZSS: L1/L2 |
| RTK Positioning Accuracy |
Plane: 1cm+1ppm
Elevation: 1.5cm+1ppm |
| Single Point Positioning |
Plane: 1.5m
Elevation: 2.5m |
| DGPS Accuracy |
Plane: 0.4m
Elevation: 0.8m |
| Positioning Update Rate |
1Hz, 2Hz, 5Hz, 10Hz and 20Hz |
| Initialization Time |
<10 seconds |
| Recapture |
<1 second |
| Initialization Reliability |
>99.9% |
| Differential Data Transport Format |
RTCM v3.0/3.2 |
| Battery Features |
Double battery compartments,
10400mAh 7.4V (single battery 5200 mAh)
Mobile station lasts up to 12 hours,
hot plugging supported |
| Power Adapter |
Input: AC 100-240V 50/60Hz Output: 12V 5A |
| Battery Charger |
QC3.0 fast charge |
Communication Unit
| Built-in Radio Station |
Built-in integrative receiving and transmitting radio station,
with automatic optimal channel selection
Frequency range: 410 |
| Wi-Fi Communication |
802.11 a/b/g/n |
Physical Properties
| Dimensions |
Φ178*110mm |
| Material |
Aluminum alloy |
| Waterproof and Dustproof |
IP65 |
| Working Temperature |
-40℃ - 65℃ |
| Storage Temperature |
-50℃ - 75℃ |
